Model: MX-ZW1500 CNC BUSBAR BENDING MACHINE
Category :
keywords :
Cnc busbar processing machine
Product Introduction
Suitable for any angle, flat bend, Z-shaped bend, U-shaped bend, vertical bend, multi-bend combination.
Dual axis positioning bending
Powerful manufacturer Support customization
Equipment introduction
ZW-MX1500 CNC servo busbar bending machine is a high-efficiency, highly automated, and high-precision bus bar processing equipment used for bending copper and aluminum bus bars. This machine adopts a high-power, large-inertia servo motors and Siemens CNC system HMI, and cooperates with the CAD/CAM software system independently developed by our company. Optional bending mold can realize flat bending, vertical bending, U-bending, Z-bending, multi-bending assembly and other operations. It’s widely used in high and low voltage switch cabinets, transformer manufacturing, box-type substations, bus-way and other power electrical industries.
Equipment details
| 360º rotation screen | Linear guide / ball screw HIWIN |
 |
 |

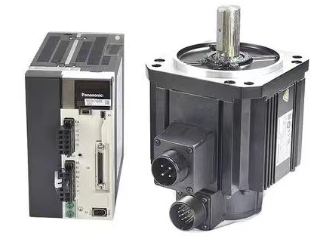

| Reducer reduces speed and increases torque | Servo motor & servo driver |
 |
 |
Technical parameters
| Item | Unit | Parameters |
| Nominal Force | KN | 600 |
| Motor Power | KW | 5.5 |
| Bending Precision | Degree | +/-0.3 |
| Max. Bending Stroke | mm | 220 |
| Block Gauge Precision | mm | +/-0.15 |
| Max. Flat Bending Sizes | mm | 16×200 |
| Max. Vertical Bending Sizes | mm | 12×100 |
| Block Gauge Stroke | mm | 1500 |
| Machine Weight | KG | 2800 |
| Outside Dimension | mm | 3450*1200*1750 |
Main accessories
| No. | Descriptions | Brand |
| 1 | X、Y Servo motor | INVT |
| 2 | linear guide/ball screw | HIWIN/TBI |
| 3 | Precision planetary reducer | Titanium Mag |
| 4 | Electrical components | Schneider |
| 5 | PLC | SIEMENS |
| 6 | Industrial switch | TP-LINK |
| 7 | Industrial control all-in-one system | Qiyang |
| 8 | Sensor | Omron |

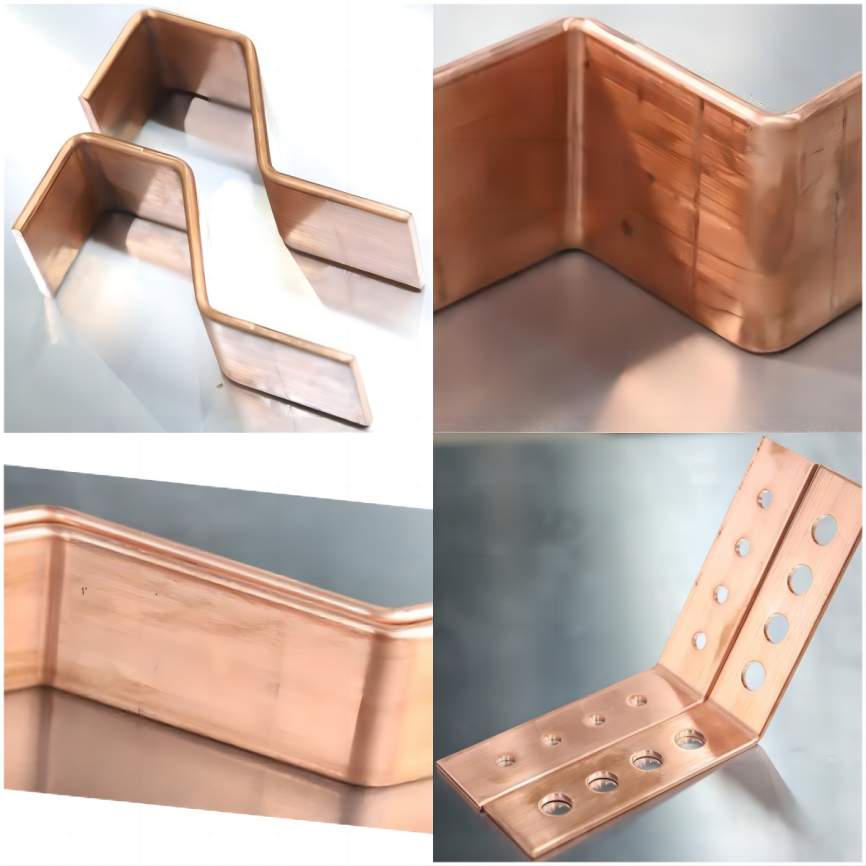

Finished sample showing
Qualifications
With comprehensive qualification certificates, you can get that our products meet the strict industry standards.
Factory workshop
Jinan Rongruida CNC Machinery Co., Ltd. was established in 2016. It is a high-tech company specializing in the R&D, desigh, production, sales and technical services of power equipment.Our company's main products include busbar processing machines, transformer winding machines, fiber laser cutting machines, Bowen sheet forming machines, heat shrink tube forming machines, insulation material engraving machines, vibrating knife cutting machines, etc.
Our service
Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.
Before sales
Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.
In sales
We will update information about your order position.
After sales
The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.
Quality assurance
All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.
Machine Packing And Loading
Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
Why choose us
THE FOUR GUARANTEES ARE MORE REASSURING
1
Source factory
2
Support customization
3
Professional guidance
4
Worry-free after-sale service
