Model: MX-303BS Copper busbar cutting machine
Category :
keywords :
Cnc busbar processing machine
Product Introduction
Equipped with three working units for cutting, punching, and bending, you can accomplish all kinds of processing tasks on the bus bars simultaneously. You can easily cut, punch (round hole and oval hole), flat bend, vertical bend, U-bend, flat press, and twist with this versatile machine.
Main advantage

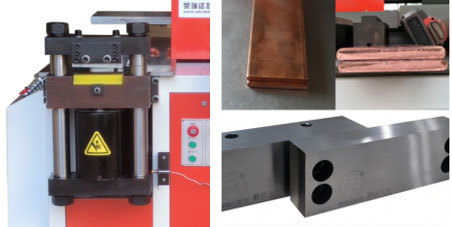

Cutting station:
It adopts thickened ductile iron mid-beam ensures no deformation during long-term use and improves machine stability.
It adopts a shearing structure with a smooth cutting surface, no burrs, no waste, and saves material.
You can step the food-switch, cutting button to process.
Punching station: The six-mode integral turntable is forged from ductile iron and can be installed with molds of different sizes and shapes. So no need to change tools frequently.The turntable is made of one piece, which better ensures the concentrically of the upper and lower tools. By mold conversion, round holes, oval holes, square holes and other alien holes can be punched.

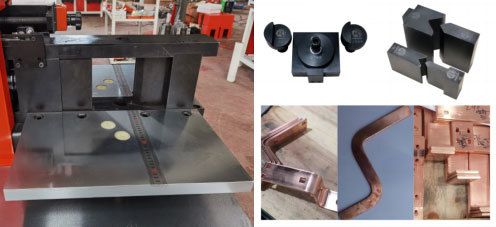

Bending station: Adopts closed structure, which makes it uniform during processing and improves the repeat positioning accuracy in mass production. It uses a double-layer worktable, so the three stations can work at the same time without affecting. With different tools, it can make flat bending, vertical bending, U-bending, twisting and other operation.
Technical parameters
| Item | MX-303BS |
| Max. Processing Width | 160mm |
| Max. Processing Thickness | 16mm |
| Punching Nominal Force | 300KN |
| Punching Range | Ф4.3-Ф35 |
| Cutting Nominal Force | 500KN |
| Bending Nominal Force | 500KN |
| Max. Vertical Bending Width | 100mm |
| Max. Vertical Bending Thickness | 10mm |
| Motor Power | 3*4kw |
| Oil Tank Capacity | 90kg |
| Bending Precision | 1° |
| Repeat Bending Precision | 0.2° |
| Outside Dimension | 1780*1400*1200mm |
| Machine Weight | 1400kg |
Qualifications
With comprehensive qualification certificates, you can get that our products meet the strict industry standards.
Factory workshop
Jinan Rongruida CNC Machinery Co., Ltd. was established in 2016. It is a high-tech company specializing in the R&D, desigh, production, sales and technical services of power equipment.Our company's main products include busbar processing machines, transformer winding machines, fiber laser cutting machines, Bowen sheet forming machines, heat shrink tube forming machines, insulation material engraving machines, vibrating knife cutting machines, etc.
Our service
Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.
Before sales
Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.
In sales
We will update information about your order position.
After sales
The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.
Quality assurance
All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.
Machine Packing And Loading
Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
