Model CJ-MX902 CNC Busbar Punching Cutting Line
Category :
keywords :
Cnc busbar processing machine
Product Introduction
The CNC busbar punching cutting line is a state-of-the-art six-axis CNC equipment designed to allow for complete control over the feeding, discharging, and mold movement processes. The system is controlled by Siemens, ensuring the highest level of precision and efficiency in the manufacturing process.
It’s widely used in high and low voltage complete sets, switch cabinets, transformer manufacturing, box-type substations, bus ducts and other power and electrical industries.
Equipment advantage
| Precision and durability Premium quality | |
 |
Taiwan silver wire rod SUPER ball screw |
| Siemens 808D Six-axis control system |  |
 |

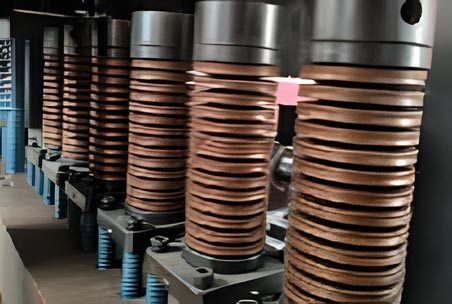

Nine punches and one cut position Using multiple sets of high anti-pressure disc springs |
Major function
| Cutting | Chamfering |
 |
|
| Round hole | Oblong hole |
 |
 |
Technical parameters
| Item | CJ-MX902 | |
| Nominal Force | 600kn | |
| Max. Processing Width | 200mm | |
| Max. Processing Thickness | 16mm | |
| Die Number | Punching | 9 |
| Cutting | 1 | |
| Embossing | N/A | |
| Punching Precision | ±0.20mm | |
| Embossing Area | N/A | |
| Punching Range | φ4.3-35mm | |
| Control Axes Number | six | |
| Punching Frequency | 10-180time/min(stroke 20mm) | |
| Main/Vice Clamp Axis Max. stroke | 205mm | |
| Cylinder Stroke | ≥45mm | |
| Outside Dimension | 10500*2700*1850 | |
| Motor Power | 20KW | |
| Machine Weight | 6000kg | |

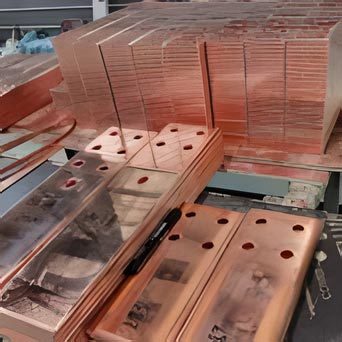

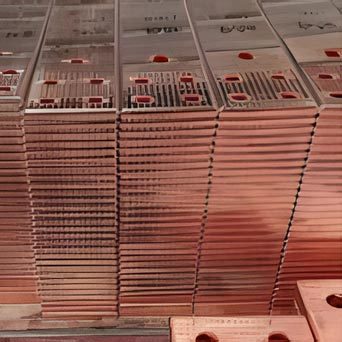

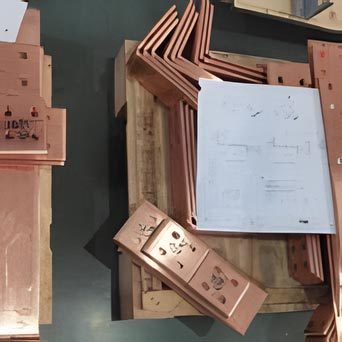

Sample showing
 |
 |
 |
 |
Qualifications
With comprehensive qualification certificates, you can get that our products meet the strict industry standards.
Factory workshop
Jinan Rongruida CNC Machinery Co., Ltd. was established in 2016. It is a high-tech company specializing in the R&D, desigh, production, sales and technical services of power equipment.Our company's main products include busbar processing machines, transformer winding machines, fiber laser cutting machines, Bowen sheet forming machines, heat shrink tube forming machines, insulation material engraving machines, vibrating knife cutting machines, etc.
Our service
Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.
Before sales
Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.
In sales
We will update information about your order position.
After sales
The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.
Quality assurance
All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.
Machine Packing And Loading
Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
Why choose us
THE FOUR GUARANTEES ARE MORE REASSURING
1
Source factory
2
Support customization
3
Professional guidance
4
Worry-free after-sale service
