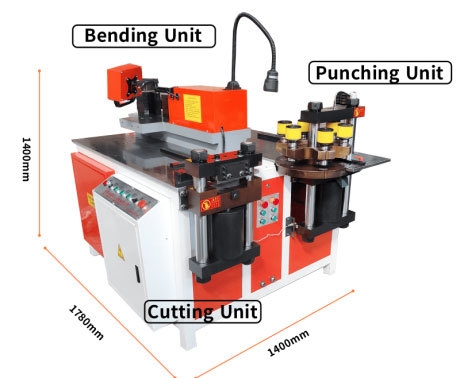

MX-303KSSK CNC punching cutting bending busbar machine

Perform multiple operations at one time Saving valuable time and effort Siemens PLC ensurest the machine operates smoothly and efficiently Producing high-quality results every time.

Machine Details

Compare with similar CNC busbar processing machine

Rongruida brand CNC bus bar processing machine	Other brand CNC bus bar processing machine

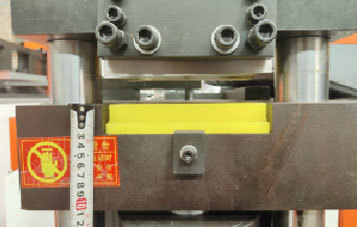

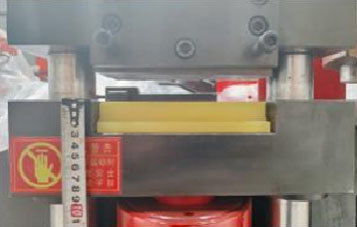

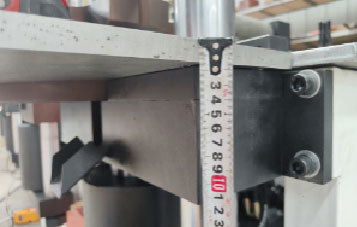

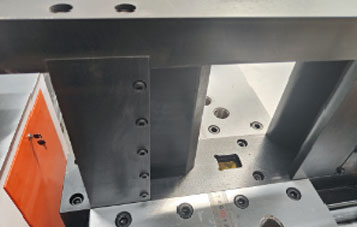

Thickened ductile iron material mid-beam The cutting unit has a stable structure and will not deform after long-term use, ensuring accuracy and extending the service life of the blades.	Unthickened ordinary A3 material mid-beam The unstable structure of the cutting unit can easily lead to loosening and deformation of the structure, loosening of the oil cylinder,damage to the blades, and increased later costs.

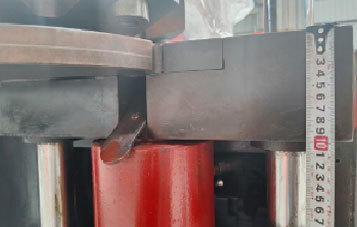

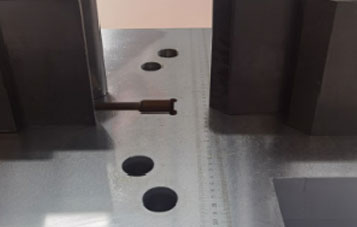

Thickened No. 45 steel tempered and quenched punched mid-beam. The punching unit has a stable structure and is not easily deformed, extending the service life of the punching dies.	Ordinary A3 material unprocessed punched mid-beam. The unstable structure of the punching unit can easily lead to loosening and deformation of the structure, loosening of the oil cylinder, damage to the punching dies, and increased later costs.

Open structure bending unit, it's easy to pick up and place bus bars, and easy to observe the bending angle.	Closed structure bending unit, it's not easy to pick up and place bus bars.

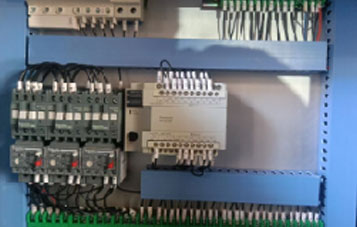

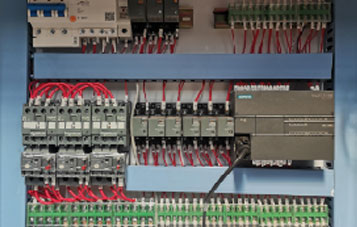

The circuit is perfect, installed 6 sets of Schneider control relays, thereby protecting the Siemens PLC and longer the life of it.	The circuit is imperfect, PLC lacks relay protection, which easily damages PLC contacts and increases later costs.

Technical parameters

Item	MX-303KSSK
Max. Processing Width	160mm
Max. Processing Thickness	16mm
Punching Nominal Force	300KN
Punching Range	Ф4.3-Ф35
Cutting Nominal Force	500KN
Bending Unit Structure	Open
Bending Nominal Force	500KN
Max. Vertical Bending Width	100mm
Max. Vertical Bending Thickness	10mm
Motor Power	3*4kw
Oil Tank Capacity	90kg
Bending Precision	1°
Repeat Bending Precision	0.2°
Outside Dimension	178014001200mm
Machine Weight	1500kg

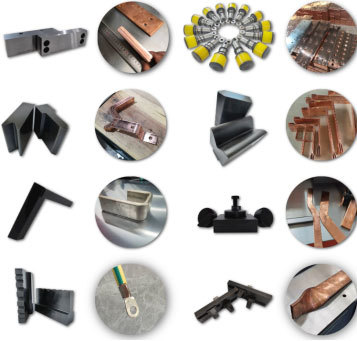

Optional accessories and tools

Qualifications

With comprehensive qualification certificates, you can get that our products meet the strict industry standards.

Factory workshop

Jinan Rongruida CNC Machinery Co., Ltd. was established in 2016. It is a high-tech company specializing in the R&D, desigh, production, sales and technical services of power equipment.Our company's main products include busbar processing machines, transformer winding machines, fiber laser cutting machines, Bowen sheet forming machines, heat shrink tube forming machines, insulation material engraving machines, vibrating knife cutting machines, etc.

Our service

Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.

Before sales

Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

In sales

We will update information about your order position.

After sales

The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Quality assurance

All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.

Machine Packing And Loading

Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
