RRDMX-200D Portable busbar cutting machine

One machine three functions
Punching Cutting Bending combined in one machine

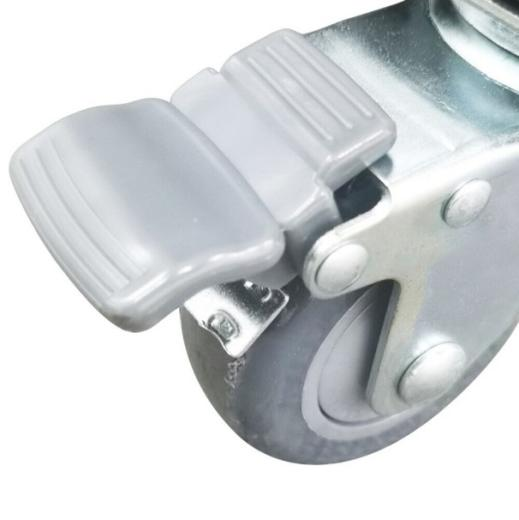

The flexible castors is free to move around

Technical parameter

Item	Parameter
Model	RRDMX-200D
Machining workpiece	Copper bars and aluminium bars
working voltage	220V/50HZ
Rated pressure (kn)	630
Max Machining Width (mm)	200
Max Processing Thickness(mm)	12
Profle size (mm)	900x700x1160
Random punching die (mm)	∅ 10.5、∅ 13.8、∅ 17、∅ 20.5
Packaging box size (mm)	990x760x1320
Machine weight (kg)	195

Combined portable busbar machine workflow start, cutting, punching, bending, so easy!

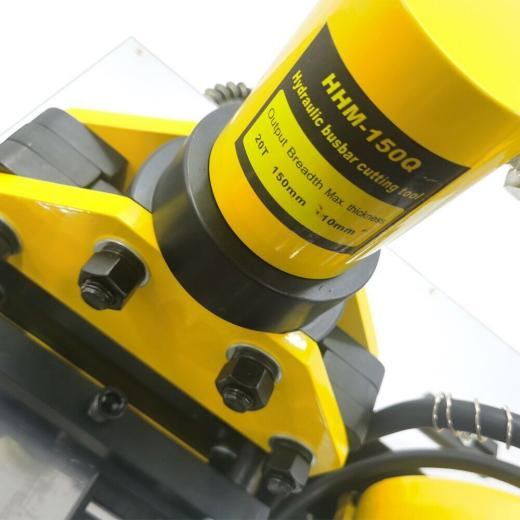

Cutting processing
No.1 Turn on the power, rotate the start key, the green power indicator lights on
	No.2 Turn on the function switch handle to the cut position
No.3 Step on the foot switch, and process cutting.
	No.4 Take out the copper busbar, the incision interface is flat, no droop and waste.

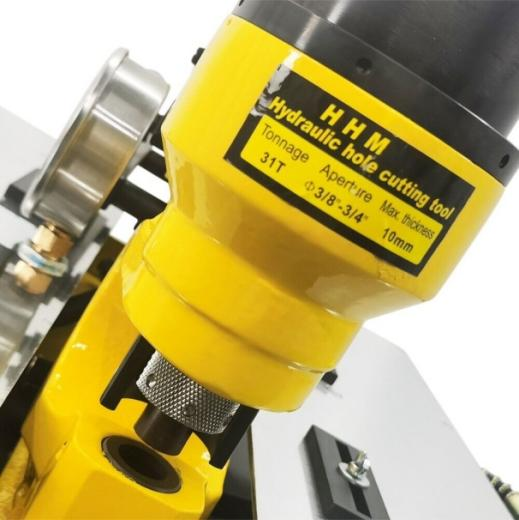

Punching processing
No.1 Turn on the function switch handle to the punch position
	No.2 Adjust the block gauge to accurately position the copper bars.
No.3 Rotate the punching dies to the right sizes, and punch
	No.4 Take out the copper busbar, Complete punching and accurate positioning.

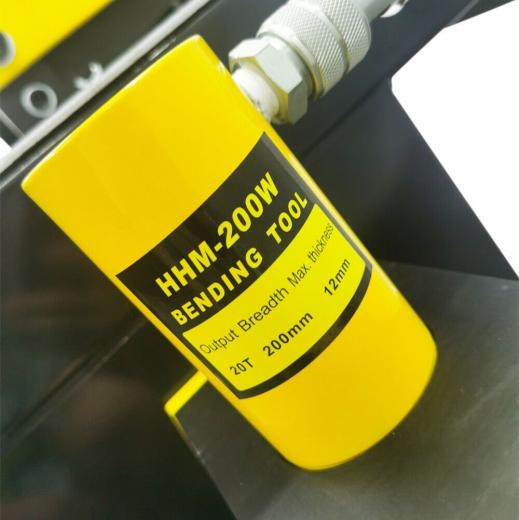

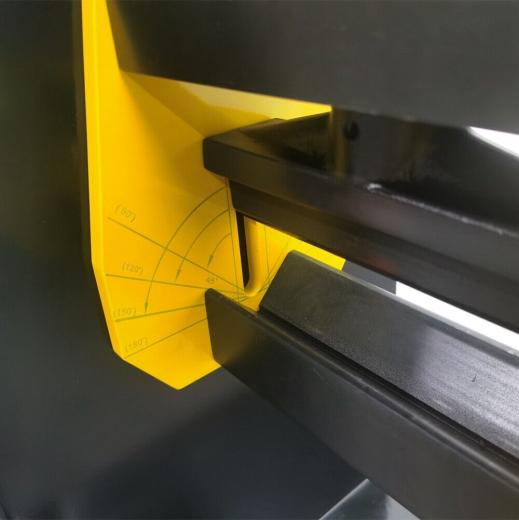

Bending processing
No.1 Turn on the function switch handle to the bend position.
	No.2 Adjust the block gauge to positionthe busbar accurately.
No.3 Step on the foot switch, and process bending
	No.4 Take out the copper busbar, evenbending force, angle in highpre.cision.

Qualifications

With comprehensive qualification certificates, you can get that our products meet the strict industry standards.

Factory workshop

Jinan Rongruida CNC Machinery Co., Ltd. was established in 2016. It is a high-tech company specializing in the R&D, desigh, production, sales and technical services of power equipment.Our company's main products include busbar processing machines, transformer winding machines, fiber laser cutting machines, Bowen sheet forming machines, heat shrink tube forming machines, insulation material engraving machines, vibrating knife cutting machines, etc.

Our service

Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.

Before sales

Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

In sales

We will update information about your order position.

After sales

The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Quality assurance

All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.

Machine Packing And Loading

Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
