RRDMX-150D Portable bus bar bending machine
Energy-efficient with
Multi-functions
Easy moving
Category :
keywords :
Portable busbar processing machine
Product Introduction

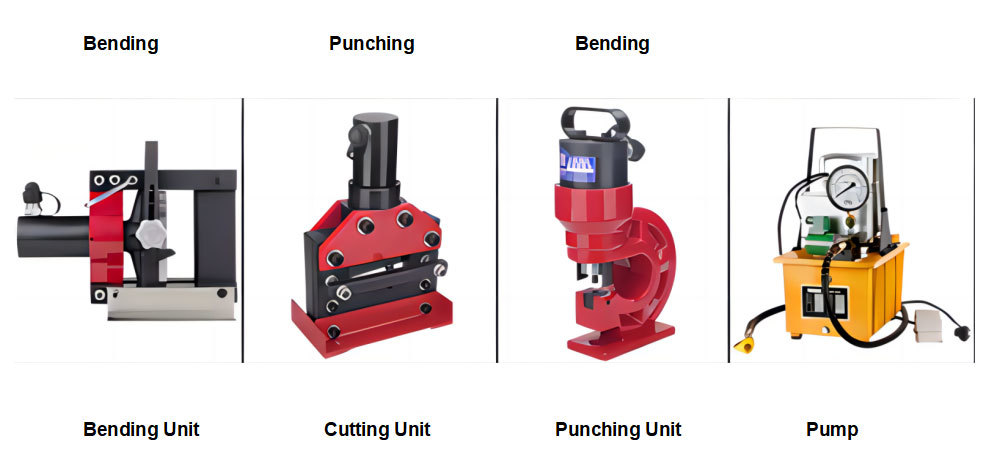

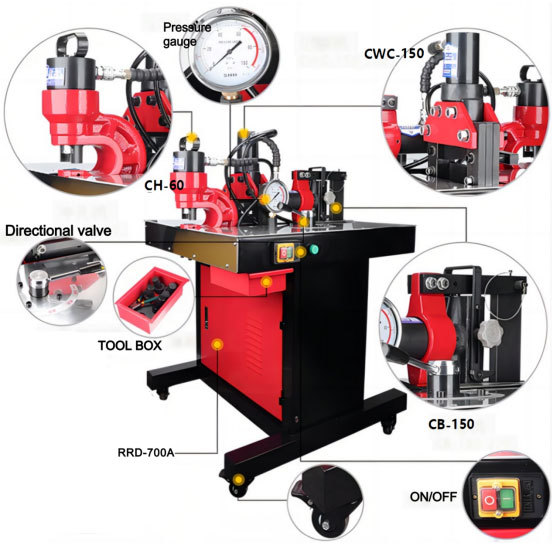

RRDMX-150D Portable Bus bar Bending Machine is featuring multiple independent processing stations for bending, punching, cutting. Equipped with an in-built electromagnetic pump and a full-copper motor, it is both ensuring stable and reliable operation. The machine also comes with a reverse valve, allowing for flexible and easy maneuvering. The pressure gauge accurately displays the working pressure, while the 360-degree swivel caster wheels make it easy to move the machine.
Technical parameter
| Item | Parameter |
| Model | RRDMX-150D |
| Machining workpiece | Copper bars and aluminium bars |
| working voltage | 220V/50HZ |
| Rated pressure (kn) | 630 |
| Max Machining Width (mm) | 150 |
| Max Processing Thickness(mm) | 10 |
| Profile size (mm) | 700x700x1200 |
| Random punching die (mm) | ∅ 10.5、∅ 13.8、∅ 17、∅ 20.5 |
| Machine weight (kg) | 195 |
| Bending processing | |
| No.1 Turn on the function switch handle to the bend position. |  |
 |
No.2 Adjust the block gauge to positionthe busbar accurately. |
| No.3 Step on the foot switch, and process bending |  |
 |
No.4 Take out the copper busbar, evenbending force, angle in highpre.cision. |
Q&A:
Q: Do you offer other bus bar processing related machines?
A: Yes, we do. Besides portable bus bar cutting machine, we also provide other bus bar processing machines, such as CNC three in one bus bar processing machine, Servo bus bar bending machine, intelligent bus bar punching cutting machine, intelligent bus bar milling machine, bus bar heat shrink tube forming machine, CNC transformer winder, and etc.
Q: How could we choose the right model low voltage winding machine?
A: Please give us your details coil size, material size, special requirements, we could recommend suit model to you.
Q: Can you customize tools upon our requests?
A: Yes, sure. We can custom tooling to match customer’s product range.
Qualifications
With comprehensive qualification certificates, you can get that our products meet the strict industry standards.
Factory workshop
Jinan Rongruida CNC Machinery Co., Ltd. was established in 2016. It is a high-tech company specializing in the R&D, desigh, production, sales and technical services of power equipment.Our company's main products include busbar processing machines, transformer winding machines, fiber laser cutting machines, Bowen sheet forming machines, heat shrink tube forming machines, insulation material engraving machines, vibrating knife cutting machines, etc.
Our service
Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.
Before sales
Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.
In sales
We will update information about your order position.
After sales
The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.
Quality assurance
All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.
Machine Packing And Loading
Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
Why choose us
THE FOUR GUARANTEES ARE MORE REASSURING
1
Source factory
2
Support customization
3
Professional guidance
4
Worry-free after-sale service
