Model CJ-MX603 CNC busbar punching machine

Integrated double clamp ensures stable and secure processing Automatic mold changing system Siemens integrated six-axis system

Major function

Punched	Cut

Equipment advantage

Premium quality Precision and durability

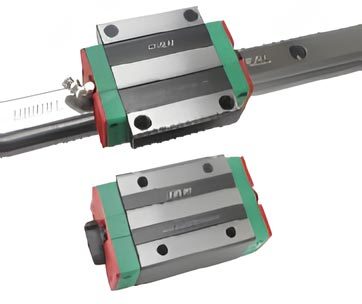

Taiwan Hiwin Linear Guide QH series Silent heavy-duty linear guide rail

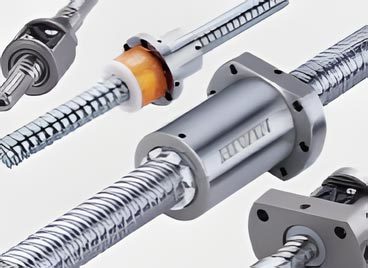

	Taiwan silver wire rod SUPER S ball screw
Three-edged cutting blade Cutting double-sided parallel without bevel

Technical parameters

Item		CJ-MX603
Nominal Force		600kn
Max. Processing Width		200mm
Max. Processing Thickness		16mm
Die Number	Punching	9
	Cutting	1
Punching Precision		±0.20mm
Embossing Area		N/A
Punching Range		φ4.3-35mm
Control Axes Number		six
Punching Frequency		10-180time/min(stroke 20mm)
Main/Vice Clamp Axis Max. stroke		205mm
Cylinder Stroke		≥45mm
Outside Dimension		1050027001850
Motor Power		20KW
Machine Weight		6000kg

Sample showing

Qualifications

With comprehensive qualification certificates, you can get that our products meet the strict industry standards.

Factory workshop

Jinan Rongruida CNC Machinery Co., Ltd. was established in 2016. It is a high-tech company specializing in the R&D, desigh, production, sales and technical services of power equipment.Our company's main products include busbar processing machines, transformer winding machines, fiber laser cutting machines, Bowen sheet forming machines, heat shrink tube forming machines, insulation material engraving machines, vibrating knife cutting machines, etc.

Our service

Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.

Before sales

Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

In sales

We will update information about your order position.

After sales

The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Quality assurance

All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.

Machine Packing And Loading

Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.

Why choose us

THE FOUR GUARANTEES ARE MORE REASSURING

Source factory

Support customization

Professional guidance

Worry-free after-sale service

GET A FREE QUOTE

Cnc busbar processing machine
