Perform multiple operations at one time Saving valuable time and effort Siemens PLC ensurest the machine operates smoothly and efficiently  Producing high-quality results every time.

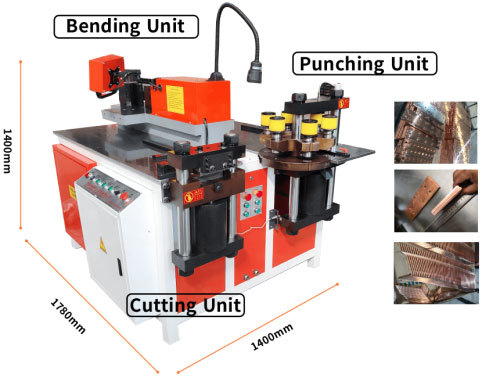

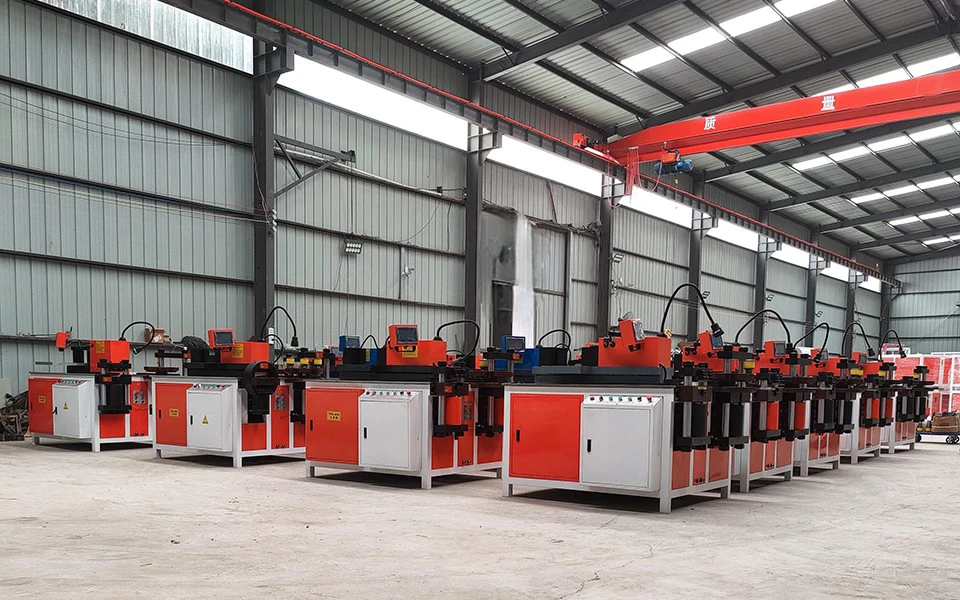

MX-303KSSK CNC busbar processing machine has three working units: punching, cutting and bending. The three units can be used at same time, which shorten the processing time and improve production efficiency. The bending unit use Siemens PLC. By relative operation unit, it can do all kinds of processing to copper and aluminum bus bar quickly and easily, such as shearing/ cutting, punching (circular hole and oblong hole), flat/horizontal bending, vertical bending, U-bending, embossing, flat pressing, twisting, cable connector processing etc.



Main performance characteristics

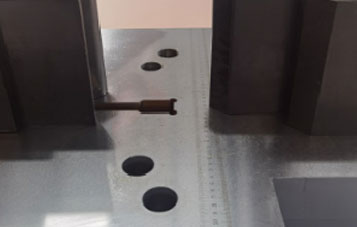

Punching unit: The six-mode integral turntable is forged from ductile iron and can be installed with molds of different sizes and shapes. There is no need to change molds frequently and the efficiency is high. The turntable is made of one piece, which better ensures the concentrically of the upper and lower molds; the mold mounting holes are CNC machined, with high precision and long service life.Through mold conversion, round holes, oval holes, square holes and other alien holes can be punched.

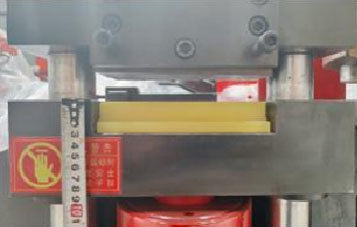

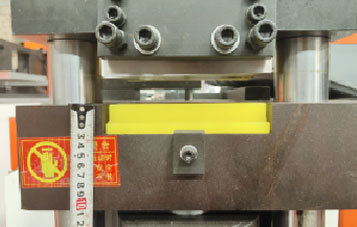

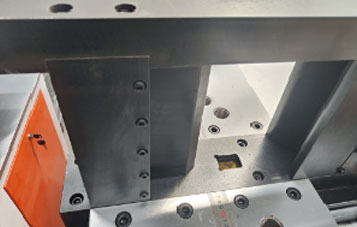

Cutting unit: It adopts thickened ductile iron mid-beam ensures no deformation during long-term use and improves machine stability; It adopts a shearing structure with a smooth cutting surface,no burrs, no waste, and saves material.

Bending unit: It adopts an open structure, making it easy to pick up and place bus bars, and it is easy to observe the bending angle; it adopts a double-layer workbench, and the three units can work at the same time without being affected. By changing the mold, it can perform flat bending, vertical bending, and embossing , cable connector, folding copper rods, twisting and other operations.

CNC system: Siemens PLC control is used, which is simple to operate; the bending angle is automatically controlled, and the system has a storage function to facilitate storage and recall at any time. Each station can set automatic shutdown time, which is more energy-saving and efficient. The system comes with a fine-tuning function,making it more convenient to use.



Compare with similar CNC busbar processing machine

Rongruida brand CNC bus bar processing machine	Other brand CNC bus bar processing machine
Open structure bending unit, it's easy to pick up and place bus bars, and easy to observe the bending angle.	Closed structure bending unit, it's not easy to pick up and place bus bars.

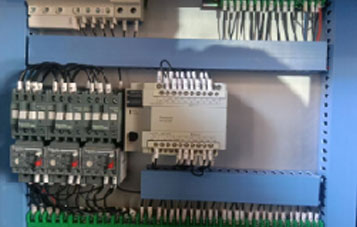

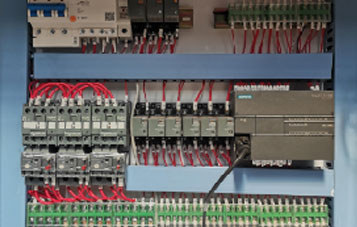

The circuit is perfect, installed 6 sets of Schneider control relays, thereby protecting the Siemens PLC and longer the life of it.	The circuit is imperfect, PLC lacks relay protection, which easily damages PLC contacts and increases later costs.
Thickened ductile iron material mid-beam The cutting unit has a stable structure and will not deform after long-term use, ensuring accuracy and extending the service life of the blades.	Unthickened ordinary A3 material mid-beam The unstable structure of the cutting unit can easily lead to loosening and deformation of the structure, loosening of the oil cylinder,damage to the blades, and increased later costs.

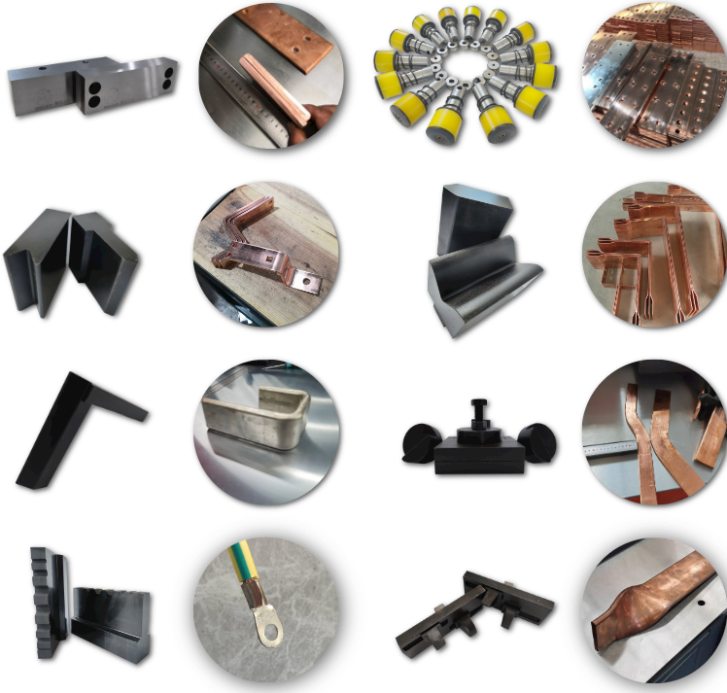

Optional accessories and tools





Technical parameters

Item	MX-303KSSK
Max. material width	160mm
Max. material thickness	16mm
Punching nominal force	300KN
Punching hole range	Ф4.3-Ф35
Cutting nominal force	500KN
Bending unit structure	Open
Bending nominal force	500KN
Max. vertical bending width	100mm
Max. vertical bending thickness	10mm
Motor power	3*4kw
Oil tank capacity	90kg
Bending precision	1°
Repeat bending precision	0.2°
Outside dimension	1780*1400*1200mm
Machine weight	1500kg
