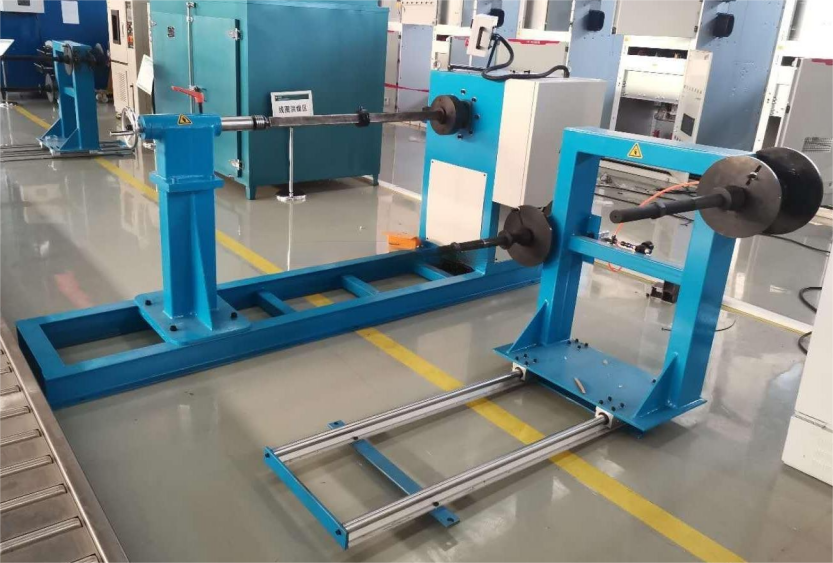

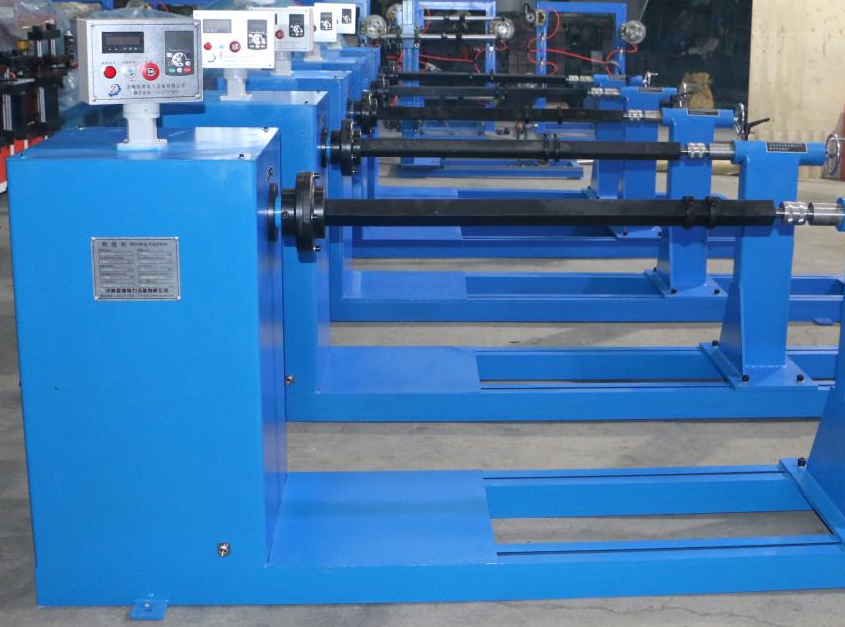

Transformer coil winding machine RX-2T is suit to coil winding of various small and medium-sized power transformers, special transformers (electric furnace transformers, reactors, transformers,etc.), winding transformers, oil-immersed transformers, dry-type transformer coils and similar processes.

Main advantage:

The winding machine adopts dual speed regulation, mechanical speed regulation and frequency conversion speed regulation to achieve step-less speed regulation. The frequency converter realizes step-less speed regulation, smooth starting and constant torque. The mechanically adjusted shift handle has three gears: low speed, neutral, and high speed; the number of revolutions can be set by a counter to automatically stop.

Guide rail and cocktail of distribution transformer winding machine: The cocktail is integrated with the main box, which is mainly composed of cocktail, live center and guide rail. The cocktail can be moved axially on the guide rail of the base manually to meet the needs of different length linear dies. By rotating the hand wheel,the live center can be extended or returned, which is convenient to move the mold up and down, and improve the strength.The locking handle can lock the top idler and support its weight.

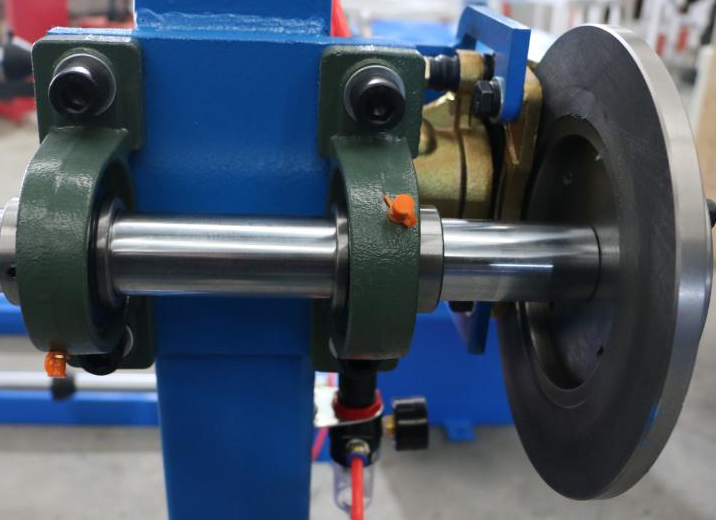

It is equipped with automatic brake device, which can brake smoothly and prevent reversing when winding stops.

It can preset the number of coil turns and control the positive inversion; the high precision encoder can count the positive and negative.

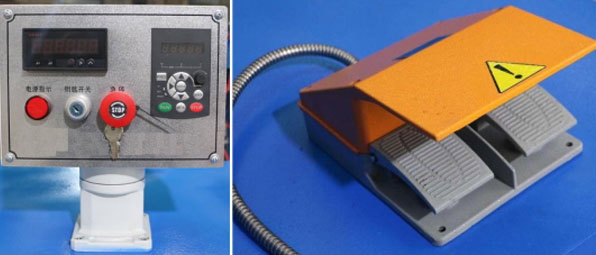

Button station centralized control, foot switch or button control spindle start and stop.

Technical Parameters:

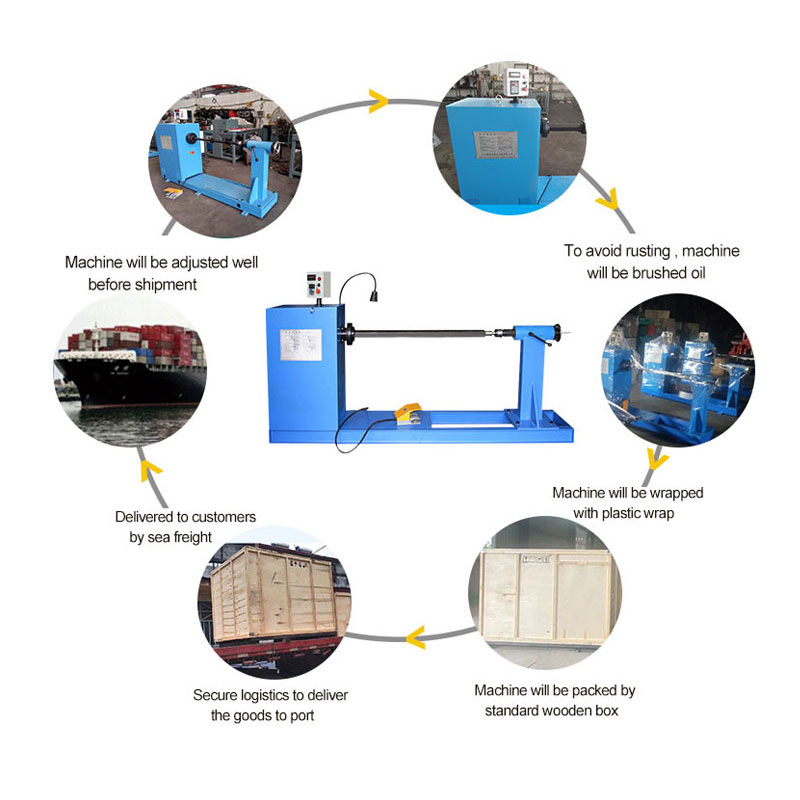

Package and delivery

Packed in standard import and export wooden boxes, free from fumigation and treated with rust prevention.

Our Service

1.Quality assurance: All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.

2.Before sales: Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

3.In sales: We will update information about your order position.

4.After sales: The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Q&A:

Q: How could we choose the right model low voltage winding machine?

A: Please give us your details coil size, material size, special requirements, We could recommend suit model to you.

Q: Can you customize tools upon our requests?

A: Yes, sure. We can custom tooling to match customer’s product range.
