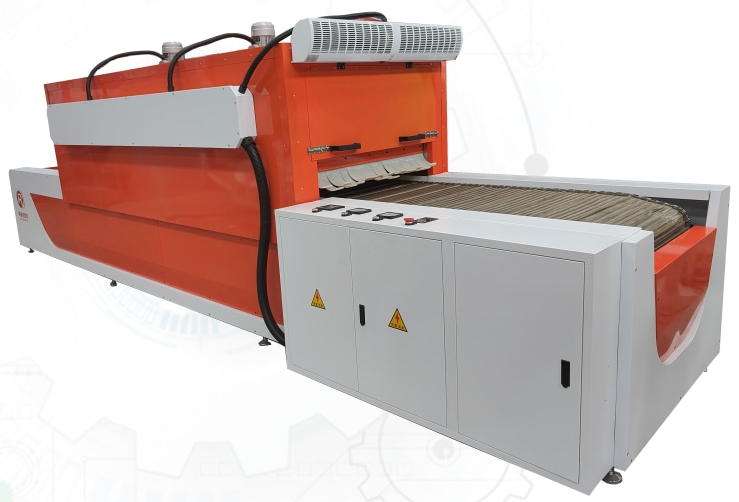

RSG-MX1030 Busbar heat shrink tube forming machine

Designed for batch production of bus bar heat shrinkable sleeves Contact-less relay SSR (SCR) Ensures the efficient and accurate heating of bus bar

Focus on details

Precise temperature control	High temperature cycle

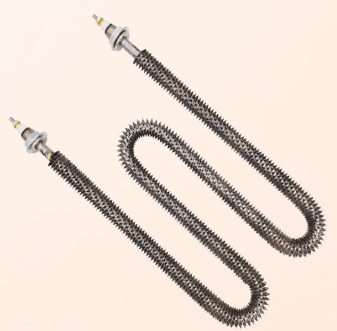

	Achieve ultimate craftsmanship Batch baking Stable baking 6 sets of M-shaped heating tubes Heating speed up soon
Dual internal fan circulation Ensure constant temperature inside the box Efficient heat dissipation stronger performance Strong blowing Low noise

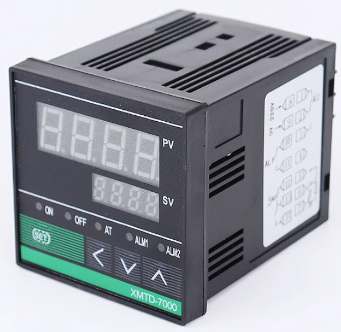

	Temperature adjustment Temperature regulation control

Technical parameters

Heat shrink tube forming equipmen
Model	RSG-MX1030
Baking range	30001000200mm
Temperature range	RT+250℃
Heating power	36KW
Heating rate:	RT+250℃≤30min
Temperature Uniformity	≤±5℃
Conveying speed	0.5-2m/min adjustable (frequency control)
Insulation layer thickness	≥150mm
Conveyor drive	0.37kw horizontal reduction motor
Machine dimensions	602014001750mm

Processing display

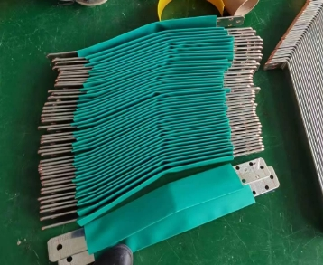

Put the heat shrink tube on the copper busbar
	Put the copper bar on the conveyor belt and send it to the oven
Take out the copper bar
	Install the copper bar into the distribution box

Qualifications

With comprehensive qualification certificates, you can get that our products meet the strict industry standards.

Factory workshop

Jinan Rongruida CNC Machinery Co., Ltd. was established in 2016. It is a high-tech company specializing in the R&D, desigh, production, sales and technical services of power equipment.Our company's main products include busbar processing machines, transformer winding machines, fiber laser cutting machines, Bowen sheet forming machines, heat shrink tube forming machines, insulation material engraving machines, vibrating knife cutting machines, etc.

Our service

Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.

Before sales

Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.

In sales

We will update information about your order position.

After sales

The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.

Quality assurance

All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.

Machine Packing And Loading

Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
