MX-303SFBSSK CNC Busbar Processing Machine
Category :
keywords :
Cnc busbar processing machine
Product Introduction
The CNC busbar processing machine is a fully-automatic machine that specializes in cutting, punching and bending copper and aluminum busbars. This machine has three working stations, each equipped with their own PLC and servo motor for precise and efficient control.
More details of CNC busbar processing machine

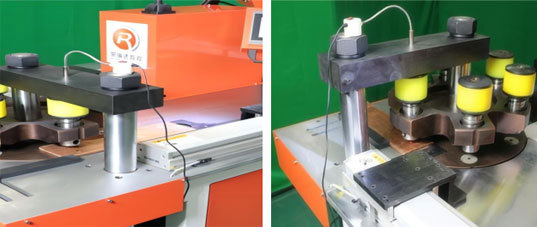

The punching station is controlled by servo motor and PLC to ensure accurate punching coordinates, which can realize the continuous positioning and punching of the porous work-piece, which is efficient and accurate.

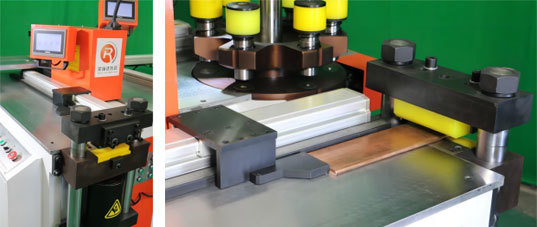

The cutting station aromatically controls the sizes of the sheared material through the servo motor and PLC, which is convenient and efficient.

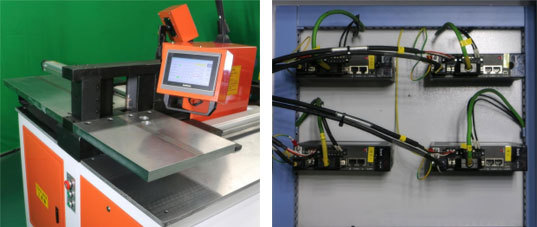

The bending unit can automatically calculate the blanking length of bending and unfolding. it control the blanking length by automatically positioning the stopper position through the servo motor, which can achieve the positioning of multiple angles and multiple bending positions in one program.
Technical parameters
| ltem | MX-303SFBSSK |
| Number of servo axes | 4pcs |
| Punching Yaxis stroke | 150mm |
| Punching X-axis stroke | 800mm |
| Cutting X-axis stroke | 800mm |
| Bending X-axis stroke | 500mm |
| Precision of block gauge | 0.2mm |
| Max. Processing Width | 160mm |
| Max. Processing Thickness | 16mm |
| Punching Nominal Force | 300KN |
| Punching Range | Ф4.3-Ф35 |
| Cutting Nominal Force | 500KN |
| Bending Nominal Force | 500KN |
| Max. Vertical Bending width | 100mm |
| Max. Vertical Bending Thickness | 10mm |
| Motor Power | 3*4kw |
| Oil Tank Capacity | 90kg |
| Bending Precision | 1° |
| Repeat Bending Precision | 0.2° |
| Outside Dimension | 1780*1650*1400mm |
| Machine Weight | 1500kg |

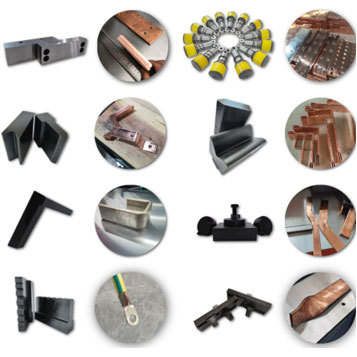

Accessories and tools
Complete accessories and molds, special molds can be customized
Machine packing and loading
Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
Qualifications
With comprehensive qualification certificates, you can get that our products meet the strict industry standards.
Factory workshop
Jinan Rongruida CNC Machinery Co., Ltd. was established in 2016. It is a high-tech company specializing in the R&D, desigh, production, sales and technical services of power equipment.Our company's main products include busbar processing machines, transformer winding machines, fiber laser cutting machines, Bowen sheet forming machines, heat shrink tube forming machines, insulation material engraving machines, vibrating knife cutting machines, etc.
Our service
Our team of experts offers professional guidance and advice every step of the way, ensuring that you feel confident and informed throughout the process. We provide worry-free after-sale service.
Before sales
Inquiry and consulting support. We will give you professional instruction and help you to buy a suitable machine, after you choose our machine, let you take the biggest profit through using our machine.
In sales
We will update information about your order position.
After sales
The equipment be guaranteed for one year. For foreign users, our company provides online video, telephone and other technical support. If you need, we can go to your factory to supply training service. We do our best to ensure that your interests are not prejudiced.
Quality assurance
All mold parts are guaranteed for three months. If quality problems occur within three months, they will be returned and replaced unconditionally.
Machine Packing And Loading
Wrap the machine after applying anti-rust oil and pack it in non-solid wood packaging boxes for safe transportation.
