Main function:

It is suitable for coil winding of various small and medium-sized power transformers, special transformers (electric furnace transformers, reactors, transformers, etc.), winding transformers, oil-immersed transformers, dry-type transformer coils and similar processes.

Equipment consist:

The equipment consists of main axis box, end box, bottom seat, layer auto coil laying rack, pneumatic system, PLC control system, servo motor system and touch screen man-machine interface, etc.

Main advantage:

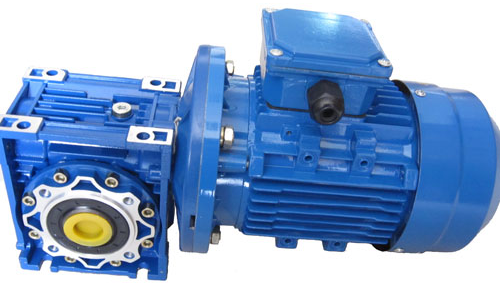

1.This machine adopts speed reducer, which has high efficiency and the noise is less than 70db.

2.The motor has electromagnetic braking function, which is sensitive and reliable.

3.The machine adopts Mitsubishi or Panasonic brand step-less speed control inverter. Under the converter, the starting and braking states are adjustable and the optimal winding state is automatically reached. Frequency conversion speed regulation has the characteristics of wide range, accurate speed regulation and stability.

4.It adopts Mitsubishi or Panasonic PLC and servo system, and the high-definition touch operation screen display can realize human-machine dialogue. It adopts imported ball screw transmission and linear guide rail to ensure accurate wiring.

5.The equipment has automatic coil arranging function.Through servo system and dedicated lines, automatic coil arranging and winding are synchronized.

6.The pay-off device is equipped with a tension function, and the tension is adjustable to meet the requirements of different coil specifications. There is also a pneumatic pressing device to meet work needs.

7.Before winding, the automatic coil arrangement pitch can be set according to different coil specifications. During the winding process, possible errors can be adjusted through coil diameter compensation and manual adjustment to ensure the tightness of the coil.

8.The desktop control box is located on the upper part of the main axis box, which is convenient, simple and clear to use.

Technical Parameters:

Q&A:

Q: Can you customize tools upon our requests?

A: Yes, sure. We can custom tooling to match customer’s product range.

Q: How could we choose the right model low voltage winding machine?

答：请提供您的详细线圈尺寸、材料尺寸、特殊要求，我们可以向您推荐适合的型号。
